OSG

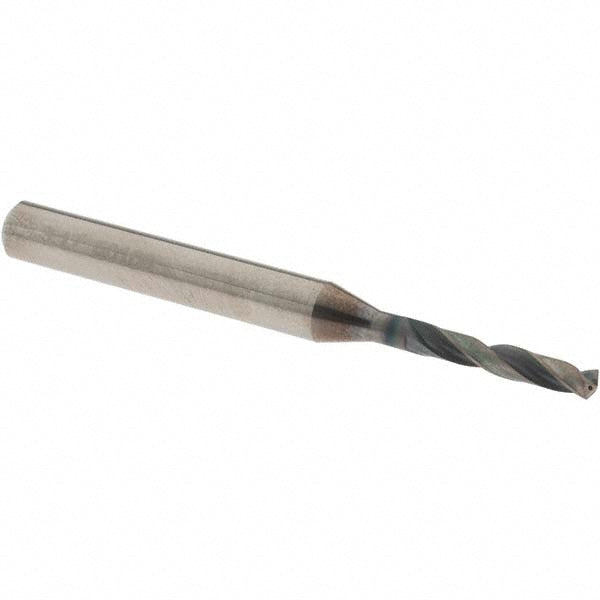

1/8" Solid Carbide Screw Machine Drill Bit, EgiAs, 140° point - OSG HP253-1248
MFR# HP253-1248Series HP253
$48.91List $62.73
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/8
Flutes2
CoatingEgiAs
Description
The OSG HP253-1248 is a 1/8" Solid Carbide Screw Machine drill bit with a EgiAs finish, 140° point. Suited for steel, alloy steel, cast iron. Series HP253.
Specifications
Coating finishEgiAs
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.0004 to +0.016 mm
Drill bit size in1/8
Drill length typeScrew Machine
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)20.00
Flute typeSpiral
Number of flutes2
Overall length2.4409
Point typeR-Thinned
Primary workpiece materialSteel; Alloy Steel; Cast Iron
Shank diameter0.2362
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
