OSG

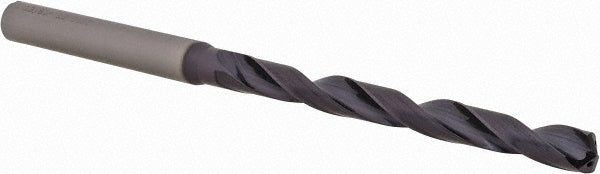

13/64" Solid Carbide Drill Bit, WD1, 140° point - OSG HP258-2031
MFR# HP258-2031Series HP258
$133.59List $171.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size13/64
CoatingWD1
Description
The OSG HP258-2031 is a 13/64" Solid Carbide drill bit with a WD1 finish, 140° point. Series HP258.
Specifications
Coating finishWD1
Coolant throughYes
Cutting directionRight Hand
Drill bit size in13/64
Drill point angle degrees140
Flute length (mm)57.00
Flute length x diameter ratio8xD
Flute typeSpiral
Overall length (mm)97.00
Point typeR-Thinned
Shank diameter (mm)6.00
Spiral typeRegular
Tool materialSolid Carbide
