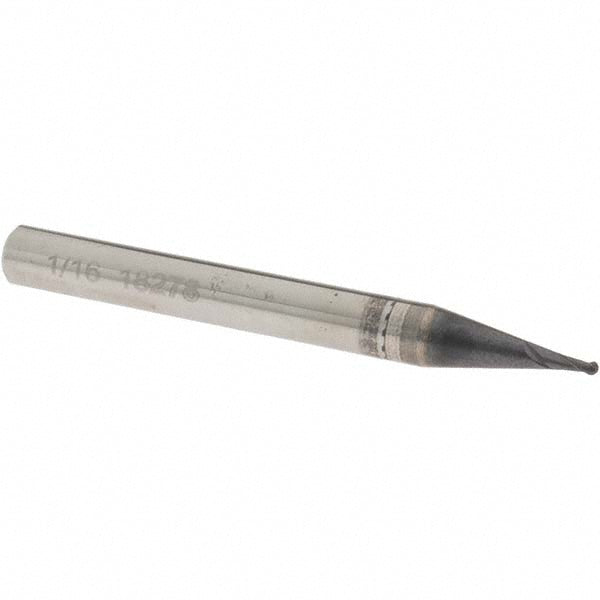

1/16in" 2-Flute Solid Carbide Ball End Mill, TiAlN - OSG HP416-0625

OSG

1/16in" 2-Flute Solid Carbide Ball End Mill, TiAlN - OSG HP416-0625

MFR# HP416-0625Series HP416

$42.85List $54.96 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/16in
Flutes2
MaterialSolid Carbide
CoatingTiAlN

Description

The OSG HP416-0625 is a 1/16in 2-flute Solid Carbide (Submicron) ball end mill with a TiAlN finish for longer tool life. 1/8in length of cut, 2-1/2in overall length. Series HP416.

Specifications

Additional informationThe Hy-Pro-Carb Is An Entire Line Up Of Performance End Mills Designed For Extend Tool Life.
ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in1/8in
Length typeStub
Manufacturers catalog numberHP416-0625
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in1/16in
Mill diameter tolerance+0.0000/-0.0015 in
Neck length0.0000
Nose radius0.0313
Number of flutes2
Overall length in2-1/2in
Reach length0.1250
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Shank diameter in1/4in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
