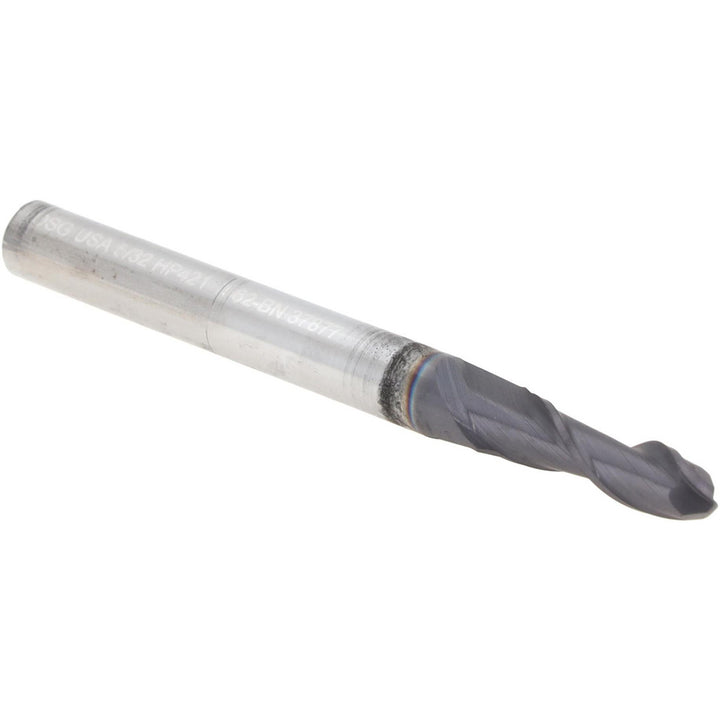

5/32" 2-Flute Solid Carbide Ball End Mill, TiAlN - OSG HP421-1562-BN

MFR# HP421-1562-BNSeries HP421BN

$29.31List $37.59 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/32

Flutes2

MaterialSolid Carbide

CoatingTiAlN

Description

The OSG HP421-1562-BN is a 5/32 2-flute Solid Carbide (Submicron) ball end mill with a TiAlN finish for longer tool life. 9/16 length of cut, 2 overall length. Series HP421BN.

Specifications

Additional informationThe Hy-Pro-Carb Is An Entire Line up of Performance End Mills Designed for Extend Tool Life.

ChipbreakerNo

Coating finishTiAlN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle35

Helix styleMedium

Length of cut in9/16

Length typeStandard

Manufacturers catalog numberHP421-1562-BN

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter in5/32

Mill diameter tolerance+0.0000/-0.0015 in

Neck length0.0000

Nose radius0.0782

Number of flutes2

Overall length in2

Reach length0.5625

Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Shank diameter in3/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
