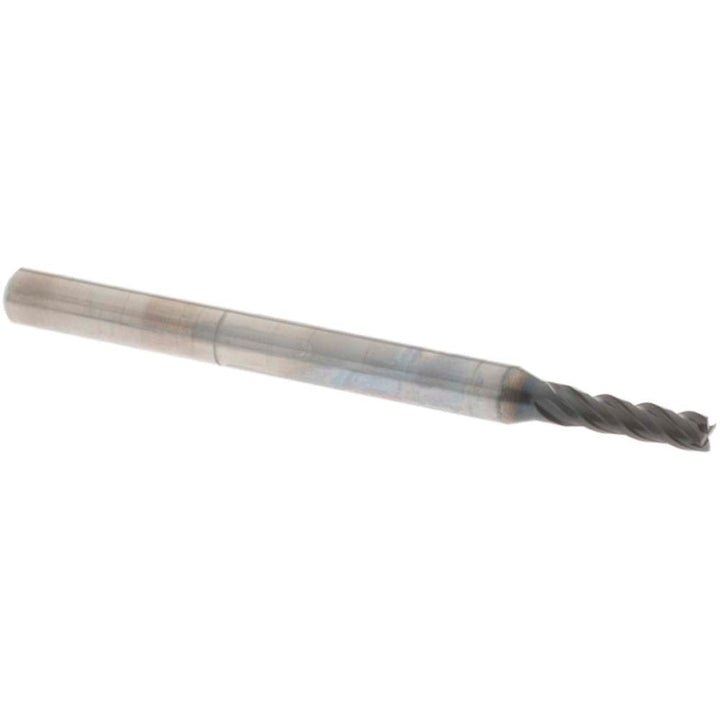

0.0787" 4-Flute Solid Carbide Square End Mill, TiAlN - OSG HP441-0787

OSG

0.0787" 4-Flute Solid Carbide Square End Mill, TiAlN - OSG HP441-0787

MFR# HP441-0787Series HP441

$19.11List $24.51 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The OSG HP441-0787 is a 0.0787 4-flute Solid Carbide (Micrograin) square end mill. 0.2756 length of cut. Series HP441.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut0.2756
Length of cut range0.2000 - 0.3000
Length typeRegular
Material gradeMicrograin
Mill diameter0.0787
Number of flutes4
Overall length (mm)39.00
Shank diameter (mm)3.00
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
