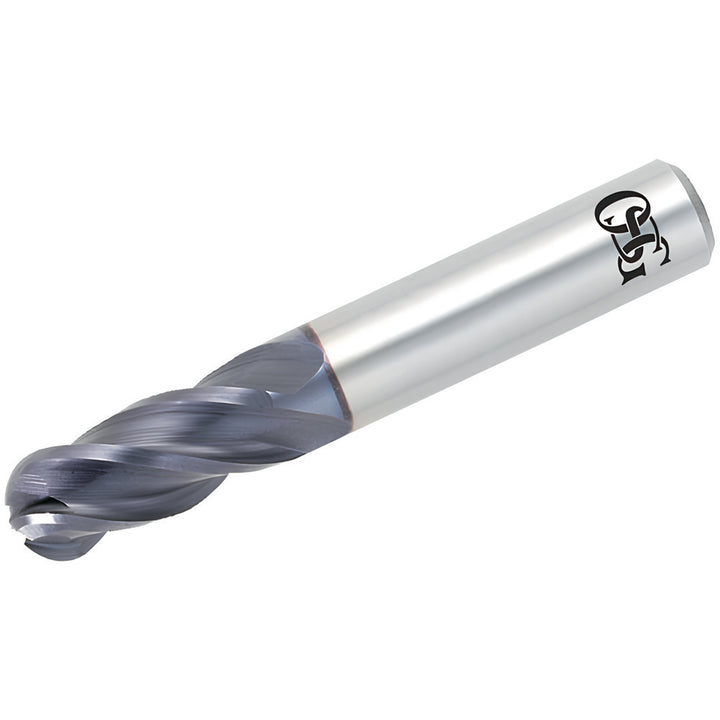

13/64in" 4-Flute Solid Carbide Ball End Mill, TiAlN - OSG HP441-2031-BN

OSG

13/64in" 4-Flute Solid Carbide Ball End Mill, TiAlN - OSG HP441-2031-BN

MFR# HP441-2031-BNSeries HP441BN

$42.26List $54.21 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter13/64in
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The OSG HP441-2031-BN is a 13/64in 4-flute Solid Carbide (Submicron) ball end mill with a TiAlN finish for longer tool life. 5/8in length of cut, 2-1/2in overall length. Series HP441BN.

Specifications

Additional informationThe Hy-Pro-Carb Is An Entire Line Up Of Performance End Mills Designed For Extend Tool Life.
ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle35
Helix styleMedium
Length of cut in5/8in
Length typeStandard
Manufacturers catalog numberHP441-2031-BN
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in13/64in
Mill diameter tolerance+0.0000/-0.0015 in
Neck length0.0000
Nose radius0.1016
Number of flutes4
Overall length in2-1/2in
Reach length0.6250
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Shank diameter in1/4in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
