OSG

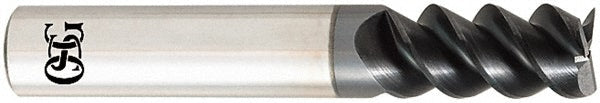

1/8" 3-Flute Solid Carbide Square End Mill, TiAlN - OSG HP460-1250

MFR# HP460-1250Series HP460

$29.85List $38.29 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/8

Flutes3

MaterialSolid Carbide

CoatingTiAlN

Description

The OSG HP460-1250 is a 1/8 3-flute Solid Carbide (Micrograin) square end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy, hardened materials. 1/2 length of cut, 1-1/2 overall length. Series HP460.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiAlN

Coating finish familyTiAlN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle60

Length of cut in1/2

Length of cut range0.5000 - 0.6000

Length typeRegular

Material gradeMicrograin

Mill diameter in1/8

Number of flutes3

Overall length in1-1/2

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Hardened Materials

Shank diameter in1/8

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
