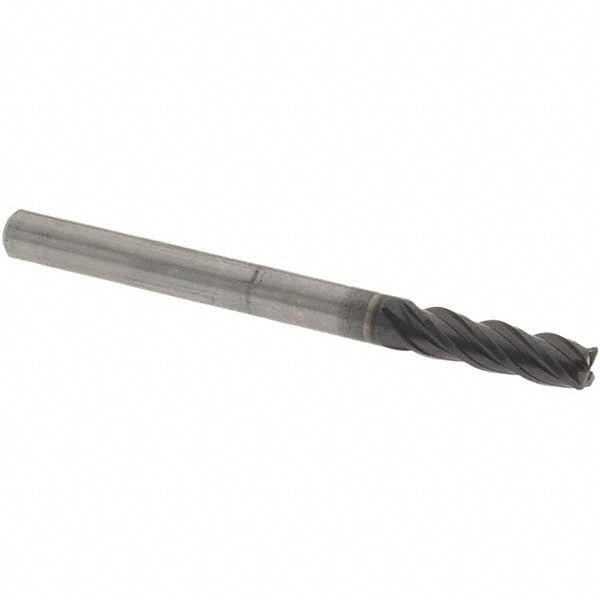

1/8in" 4-Flute Solid Carbide Corner Radius End Mill, TiAlN - OSG VG434-1251

OSG

1/8in" 4-Flute Solid Carbide Corner Radius End Mill, TiAlN - OSG VG434-1251

MFR# VG434-1251Series VG434

$19.37List $24.84 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8in
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The OSG VG434-1251 is a 1/8in 4-flute Solid Carbide corner radius end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 3/8in length of cut, 1-1/2in overall length. Series VG434.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Corner radius0.0150
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in3/8in
Length typeLong
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material removal typeRoughing & Finishing
Mill diameter in1/8in
Mill diameter tolerance0.0000/-0.0015 in
Number of flutes4
Overall length in1-1/2in
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Shank diameter in1/8in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexYes
