OSG

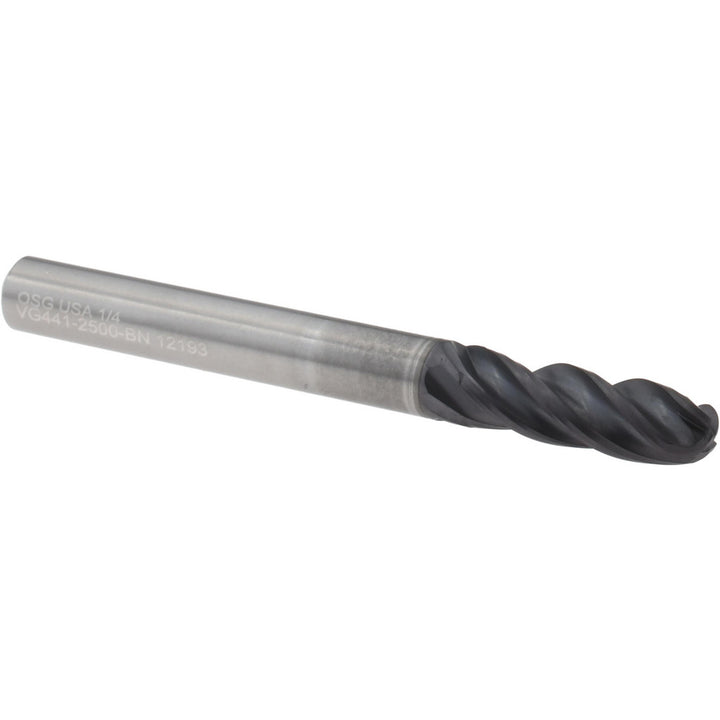

1/4" 4-Flute Solid Carbide Ball End Mill, TiAlN - OSG VG441-2500-BN

MFR# VG441-2500-BNSeries VG441BN

$42.97List $55.12 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes4

MaterialSolid Carbide

CoatingTiAlN

Description

The OSG VG441-2500-BN is a 1/4 4-flute Solid Carbide (TiAlN) ball end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. 3/4 length of cut, 2-1/2 overall length. Series VG441BN.

Specifications

Additional informationThe Hy-Pro®-Carb VGX Is An Entire Line up of Variable Geometry End Mills Designed to Extend Tool Life & Increase Metal Removal Rates By Decreasing Chatter. Unequal Flute Spacing Breaks up Harmonic Vibration Typically Created During Milling, Enabling Cutti

ChipbreakerNo

Coating finishTiAlN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle35

Helix styleMedium

Length of cut in3/4

Length typeLong

Manufacturers catalog numberVG441-2500-BN

Material gradeTiAlN

Material removal typeRoughing & Finishing

Mill diameter in1/4

Mill diameter tolerance+0.0000/-0.0015 in

Neck length0.0000

Nose radius0.1250

Number of flutes4

Overall length in2-1/2

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium

Reach length0.7500

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexYes
