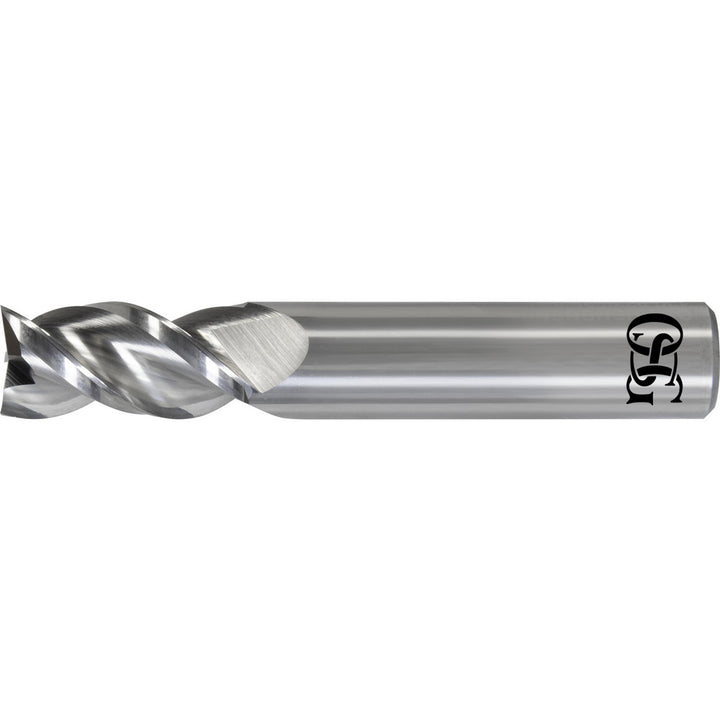

3/16" 3-Flute Solid Carbide Corner Radius End Mill - OSG VGM3-0008

OSG

3/16" 3-Flute Solid Carbide Corner Radius End Mill - OSG VGM3-0008

MFR# VGM3-0008Series VGM3-AL

$30.18List $38.71 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The OSG VGM3-0008 is a 3/16 3-flute Solid Carbide corner radius end mill. Suited for aluminum. 9/16 length of cut, 2 overall length. Series VGM3-AL.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Length of cut in9/16
Length typeRegular
Manufacturers catalog numberVGM3-0008
Material applicationAluminum; Aluminum Casting
Material removal typeFinishing
Mill diameter in3/16
Mill diameter tolerance+0/-0.0003
Number of flutes3
Overall length in2
Primary workpiece materialAluminum
Shank diameter in3/16
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexYes
