1/4" 3-Flute Solid Carbide Square End Mill - OSG VGM3-0009

OSG

1/4" 3-Flute Solid Carbide Square End Mill - OSG VGM3-0009

MFR# VGM3-0009Series VGM3-AL

$31.66List $40.61 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes3
MaterialSolid Carbide
CoatingBright

Description

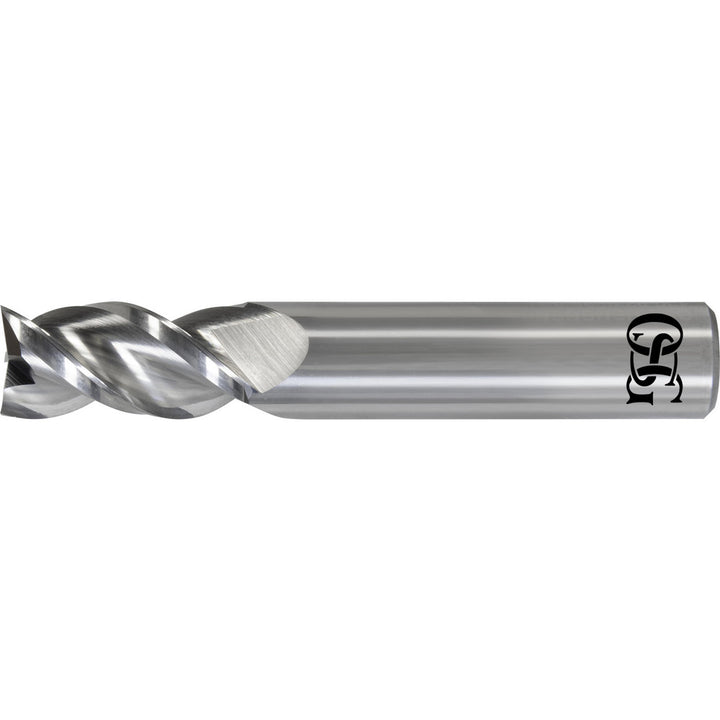

The OSG VGM3-0009 is a 1/4 3-flute Solid Carbide square end mill. 5/8 length of cut, 2-1/2 overall length. Series VGM3-AL.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeVariable Index
Helix angle40; 41; 42; 43
Length of cut in5/8
Length typeRegular
Material gradeSolid Carbide
Mill diameter in1/4
Mill diameter tolerance+0 / -0.0004
Number of flutes3
Overall length in2-1/2
Shank diameter in1/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexYes
