OSG

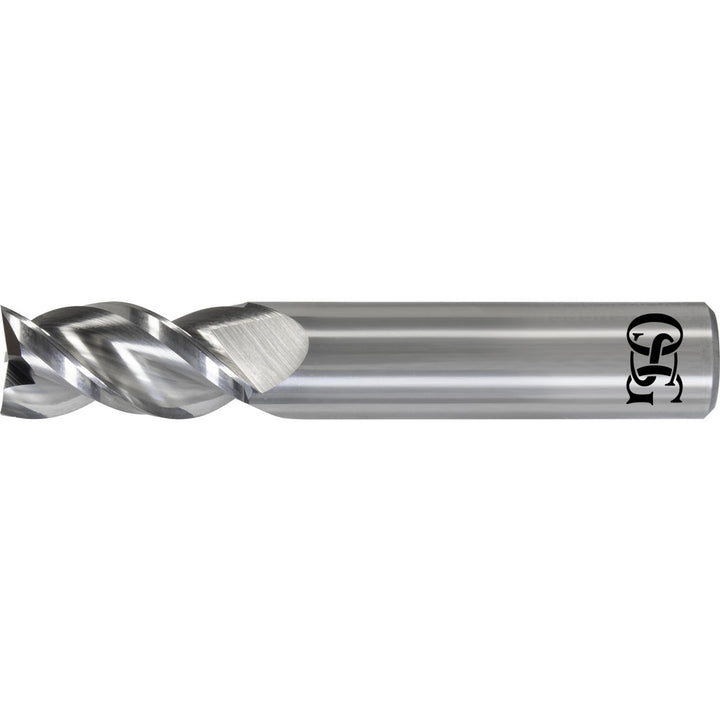

1/4" 3-Flute Solid Carbide Corner Radius End Mill - OSG VGM3-0012

MFR# VGM3-0012Series VGM3-AL

$36.43List $46.72 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The OSG VGM3-0012 is a 1/4 3-flute Solid Carbide corner radius end mill. Suited for aluminum. 5/8 length of cut, 2-1/2 overall length. Series VGM3-AL.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Corner radius0.0200

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Length of cut in5/8

Length typeRegular

Manufacturers catalog numberVGM3-0012

Material applicationAluminum; Aluminum Casting

Material removal typeFinishing

Mill diameter in1/4

Mill diameter tolerance+0/-0.0004

Number of flutes3

Overall length in2-1/2

Primary workpiece materialAluminum

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexYes
