OSG

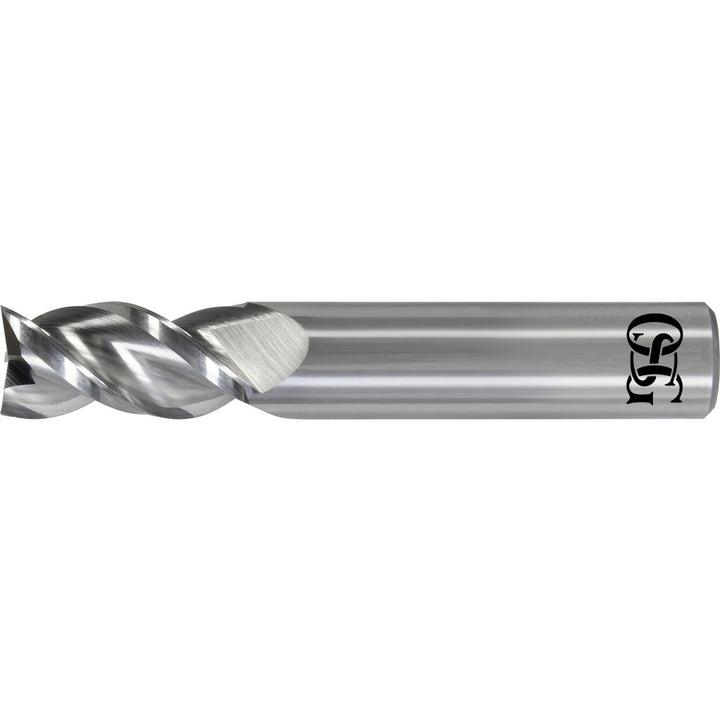

3/8" 3-Flute Solid Carbide Corner Radius End Mill - OSG VGM3-0022
MFR# VGM3-0022Series VGM3-AL
$62.44List $80.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/8
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The OSG VGM3-0022 is a 3/8 3-flute Solid Carbide corner radius end mill. Suited for aluminum. 1 length of cut, 2-1/2 overall length. Series VGM3-AL.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Length of cut in1
Length typeRegular
Manufacturers catalog numberVGM3-0022
Material applicationAluminum; Aluminum Casting
Material removal typeFinishing
Mill diameter in3/8
Mill diameter tolerance+0/-0.0004
Number of flutes3
Overall length in2-1/2
Primary workpiece materialAluminum
Shank diameter in3/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexYes
