OSG

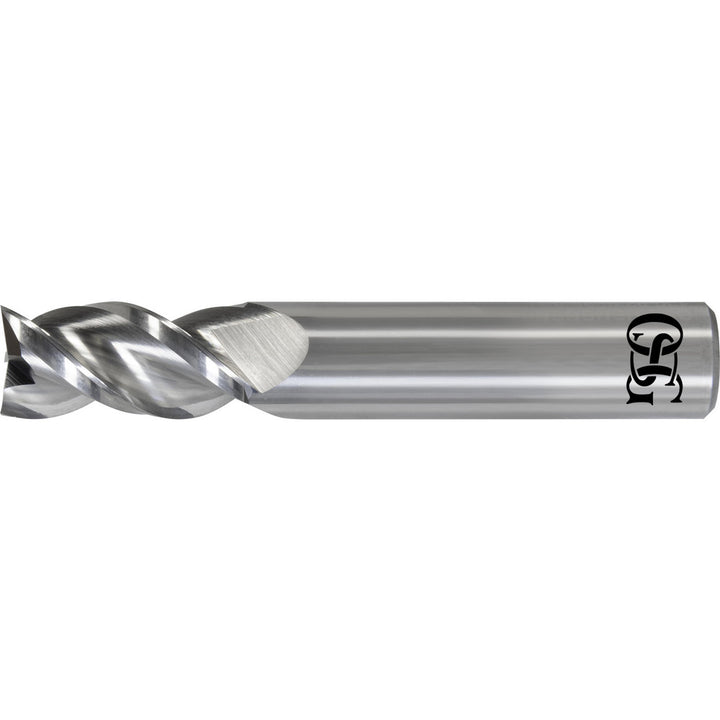

1/2" 3-Flute Solid Carbide Square End Mill - OSG VGM3-0028
MFR# VGM3-0028Series VGM3-AL
$84.15List $107.93
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2
Flutes3
MaterialSolid Carbide
CoatingBright
Description
The OSG VGM3-0028 is a 1/2 3-flute Solid Carbide square end mill. 1-1/4 length of cut, 3 overall length. Series VGM3-AL.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeVariable Index
Helix angle40; 41; 42; 43
Length of cut in1-1/4
Length typeRegular
Material gradeSolid Carbide
Mill diameter in1/2
Mill diameter tolerance+0 / -0.0004
Number of flutes3
Overall length in3
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexYes
