3/8" 5-Flute Solid Carbide Corner Radius End Mill, EXO - OSG VGM5-0119

OSG

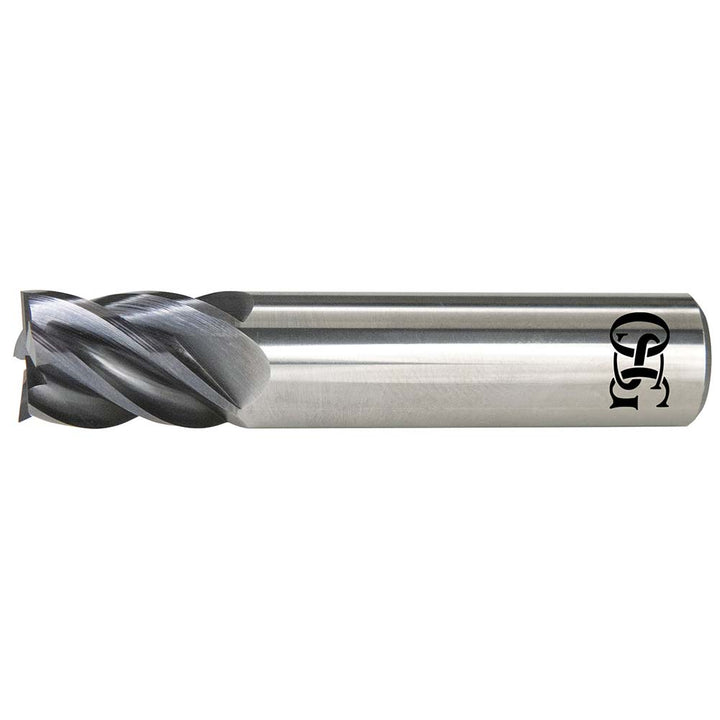

3/8" 5-Flute Solid Carbide Corner Radius End Mill, EXO - OSG VGM5-0119

MFR# VGM5-0119Series VGM5

$73.76List $94.60 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes5
MaterialSolid Carbide
CoatingEXO

Description

The OSG VGM5-0119 is a 3/8 5-flute Solid Carbide corner radius end mill with a EXO finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 1-1/2 length of cut, 4 overall length. Series VGM5.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishEXO
Coolant throughNo
Corner radius0.0600
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholder
Helix styleHigh
Length of cut in1-1/2
Length typeLong
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material removal typeRoughing & Finishing
Mill diameter in3/8
Mill diameter tolerance0.0000 to -0.0011 in
Number of flutes5
Overall length in4
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Shank diameter in3/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexYes
