0.5000" 5-Flute Solid Carbide Single End Mill, EXO - OSG VGM5-0148

OSG

0.5000" 5-Flute Solid Carbide Single End Mill, EXO - OSG VGM5-0148

MFR# VGM5-0148Series VGM5

$112.41List $144.17 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes5
MaterialSolid Carbide
CoatingEXO

Description

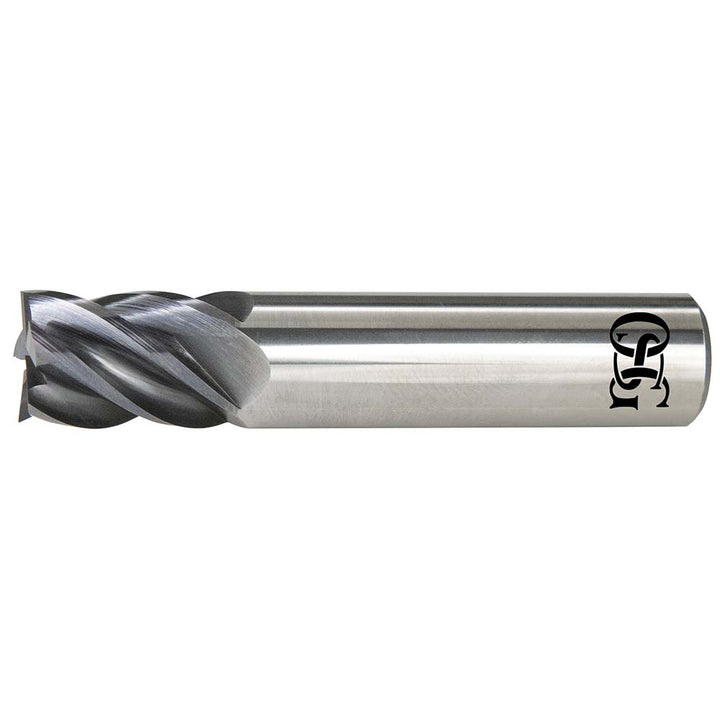

The OSG VGM5-0148 is a 0.5000 5-flute Solid Carbide (Micrograin) single end mill with a EXO finish for longer tool life. 1-1/2 length of cut. Series VGM5.

Specifications

CentercuttingYes
Coating finishEXO
Cutting directionRight Hand
End mill materialSolid Carbide
End typeSingle
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle40
Length of cut in1-1/2
Length typeRegular
Material gradeMicrograin
Mill diameter0.5000
Mill diameter frac in1/2
Number of flutes5
Shank diameter in1/2
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
