OSG

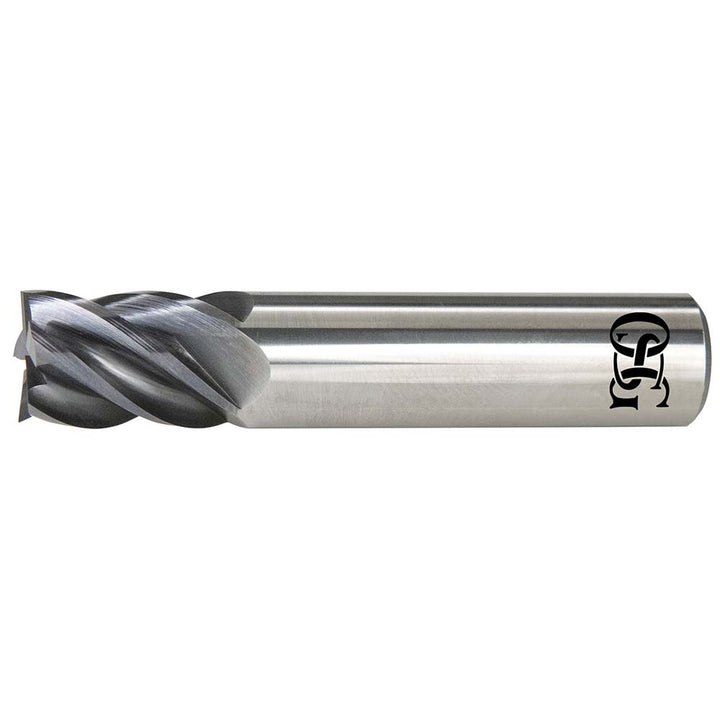

3/4" 5-Flute Solid Carbide Corner Radius End Mill, EXO - OSG VGM5-0211

MFR# VGM5-0211Series VGM5

$235.81List $302.43 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes5

MaterialSolid Carbide

CoatingEXO

Description

The OSG VGM5-0211 is a 3/4 5-flute Solid Carbide corner radius end mill with a EXO finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 1-1/8 length of cut, 4 overall length. Series VGM5.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishEXO

Coolant throughNo

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleHigh

Length of cut in1-1/8

Length typeShort

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material removal typeRoughing & Finishing

Mill diameter in3/4

Mill diameter tolerance0.0000/-0.0011 in

Number of flutes5

Overall length in4

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Shank diameter in3/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
