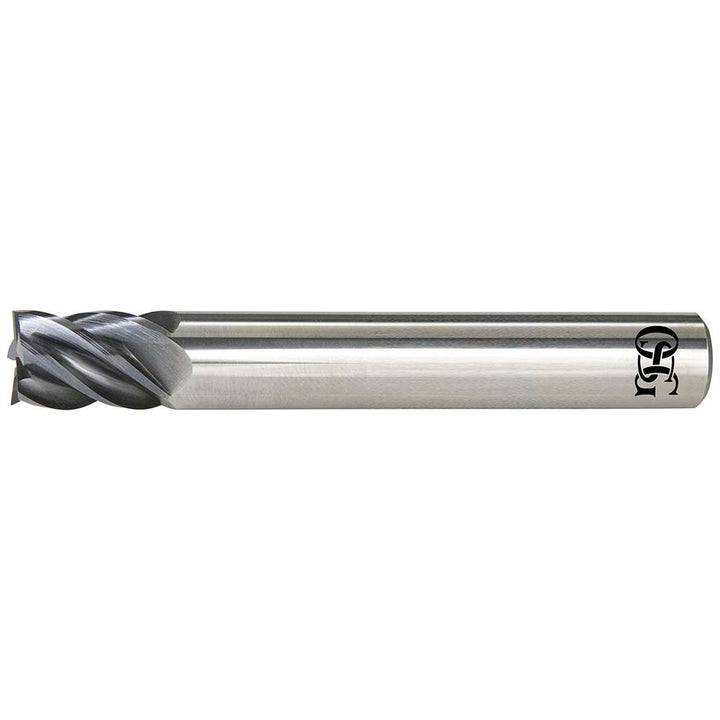

0.1875" 5-Flute Solid Carbide Single End Mill, EXO - OSG VGM5-1028

OSG

0.1875" 5-Flute Solid Carbide Single End Mill, EXO - OSG VGM5-1028

MFR# VGM5-1028Series VGM5-LN

$37.61List $48.23 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes5
MaterialSolid Carbide
CoatingEXO

Description

The OSG VGM5-1028 is a 0.1875 5-flute Solid Carbide (Micrograin) single end mill with a EXO finish for longer tool life. 15/64 length of cut. Series VGM5-LN.

Specifications

CentercuttingYes
Coating finishEXO
Cutting directionRight Hand
End mill materialSolid Carbide
End typeSingle
Extended reachYes
Flute directionRight Hand
Flute typeHelical
Helix angle40
Length of cut in15/64
Length typeExtra Long
Material gradeMicrograin
Mill diameter0.1875
Mill diameter frac in3/16
Number of flutes5
Shank diameter in3/16
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
