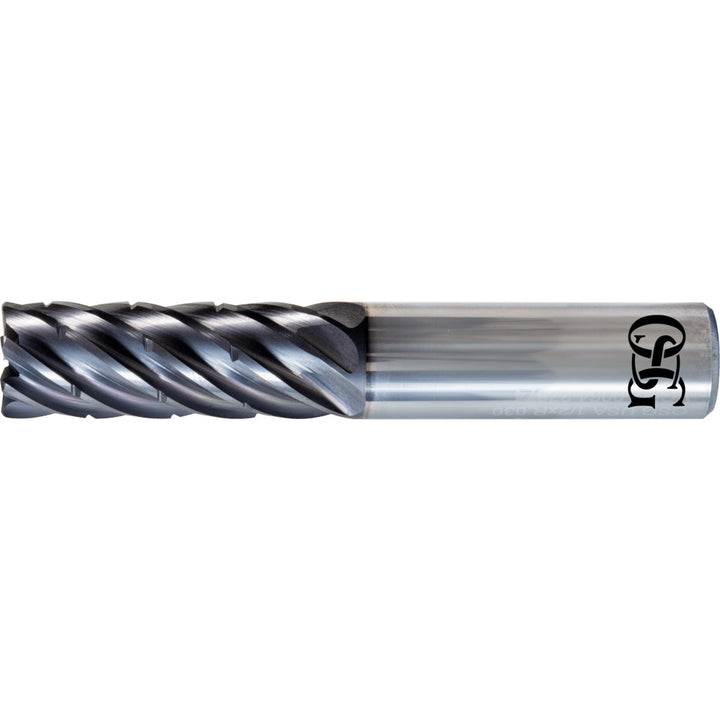

0.5000" 5-Flute Solid Carbide Square End Mill, EXO - OSG VGM5-2130

OSG

0.5000" 5-Flute Solid Carbide Square End Mill, EXO - OSG VGM5-2130

MFR# VGM5-2130Series VGM5-NIK

$89.63List $114.96 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes5
MaterialSolid Carbide
CoatingEXO

Description

The OSG VGM5-2130 is a 0.5000 5-flute Solid Carbide square end mill with a EXO finish for longer tool life. 1 length of cut. Series VGM5-NIK.

Specifications

CentercuttingYes
ChipbreakerYes
Coating finishEXO
Cutting directionRight Hand
End mill materialSolid Carbide
End typeSquare
Extended reachNo
Flute directionRight Hand
Flute typeChipbreaker
Helix angle40
Length of cut in1
Length typeRegular
Mill diameter0.5000
Mill diameter frac in1/2
Mill diameter tolerance+0 / -0.0015
Number of flutes5
Shank diameter in1/2
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
