OSG

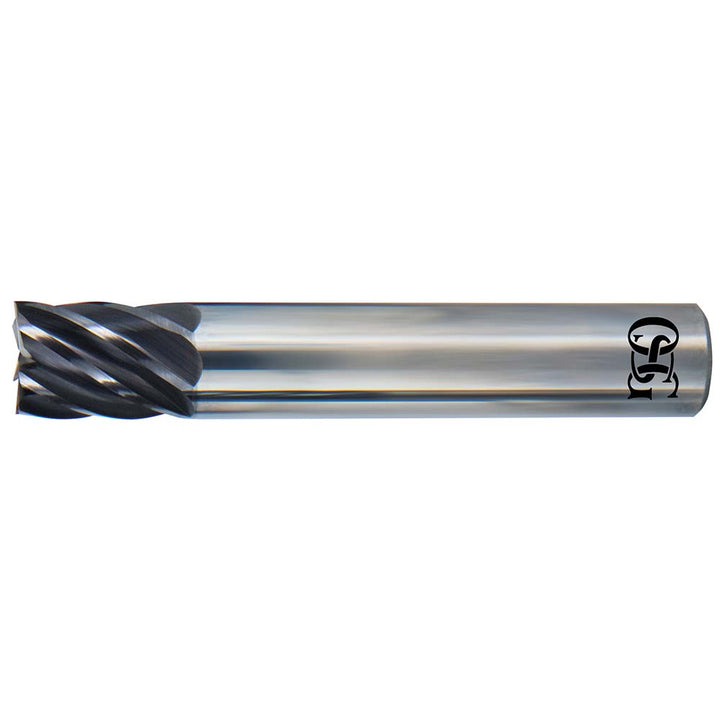

1/4" 7-Flute Solid Carbide Corner Radius End Mill, EXO - OSG VGM7-0007

MFR# VGM7-0007Series VGM7

$34.53List $44.29 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes7

MaterialSolid Carbide

CoatingEXO

Description

The OSG VGM7-0007 is a 1/4 7-flute Solid Carbide corner radius end mill with a EXO finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 1/2 length of cut, 2-1/2 overall length. Series VGM7.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishEXO

Coolant throughNo

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleMedium

Length of cut in1/2

Length typeShort

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material removal typeFinishing

Mill diameter in1/4

Mill diameter tolerance0.0000/-0.0011 in

Number of flutes7

Overall length in2-1/2

PitchClose

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
