Parlec

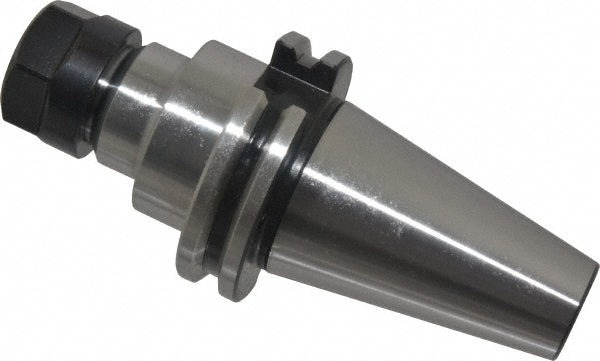

CAT40 ER Coolant Collet Collet Chuck - Parlec C40-20ERP312
MFR# C40-20ERP312
$221.47List $278.00
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Parlec C40-20ERP312 is a CAT40 ER Coolant Collet.
Specifications
Actuator typeWrench
Balanced to rpm25000
Collet nut diameter1.3400
Collet seriesER20
Collet systemER
Coolant typeThrough-Spindle
Maximum collet capacity0.5118
Minimum collet capacity0.0394
Nose diameter1.3400
Overall length5.8100
Projection3.1200
Shank typeTaper
Taper sizeCAT40
Through coolantYes
Tir0.000200
TypeER Coolant Collet
