Parlec

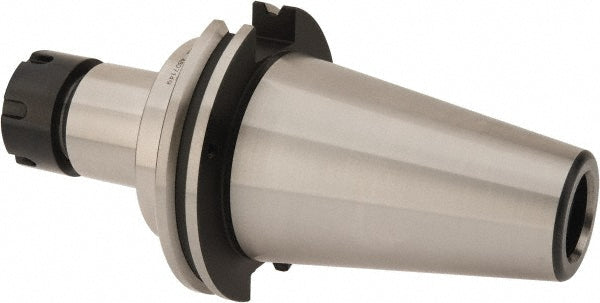

CAT50 ER Coolant Collet Collet Chuck - Parlec C50-25ERP412
MFR# C50-25ERP412
$211.65List $265.68
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Parlec C50-25ERP412 is a CAT50 ER Coolant Collet.
Specifications
Actuator typeWrench
Balanced to rpm20000
Collet nut diameter1.6700
Collet seriesER25
Collet systemER
Coolant typeThrough-Spindle
Maximum collet capacity0.6299
Minimum collet capacity0.0394
Nose diameter1.6700
Overall length8.1200
Projection4.1200
Shank typeTaper
Taper sizeCAT50
Through coolantYes
Tir0.000200
TypeER Coolant Collet
