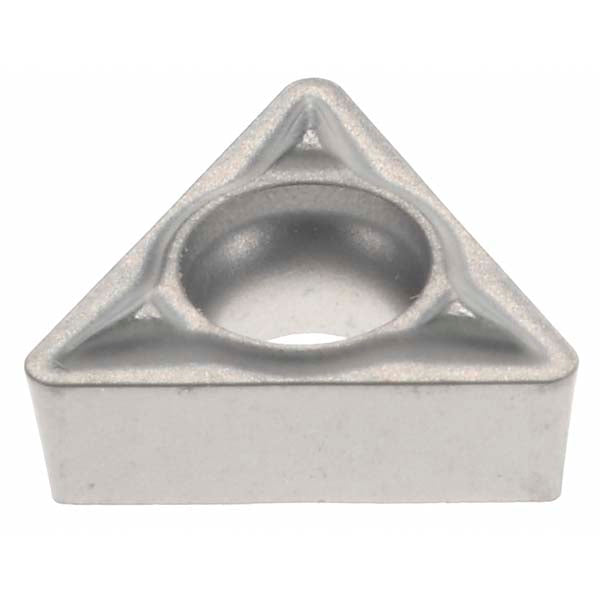

Triangle 5/32" IC Solid Carbide Insert, Grade C2 - Parlec T061615C2P
MFR# T061615C2P
$12.46List $14.00
Save 11%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeTriangle
GradeC2
MaterialSolid Carbide
Description
The Parlec T061615C2P is a solid carbide indexable insert, grade C2. Suited for aluminum, cast iron, non-ferrous metal, stainless steel.
Specifications
ChipbreakerP
Corner radius in1/64
Hole diameter0.0870
Included angle60
Inscribed circle in5/32
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code06
Insert styleTCMT
Manufacturer gradeC2
Material gradeC2
Primary workpiece materialAluminum; Cast Iron; Non-Ferrous Metal; Stainless Steel
RakePositive
Rake angle15
Relief angle7
ShapeTriangle
Thickness in5/64
