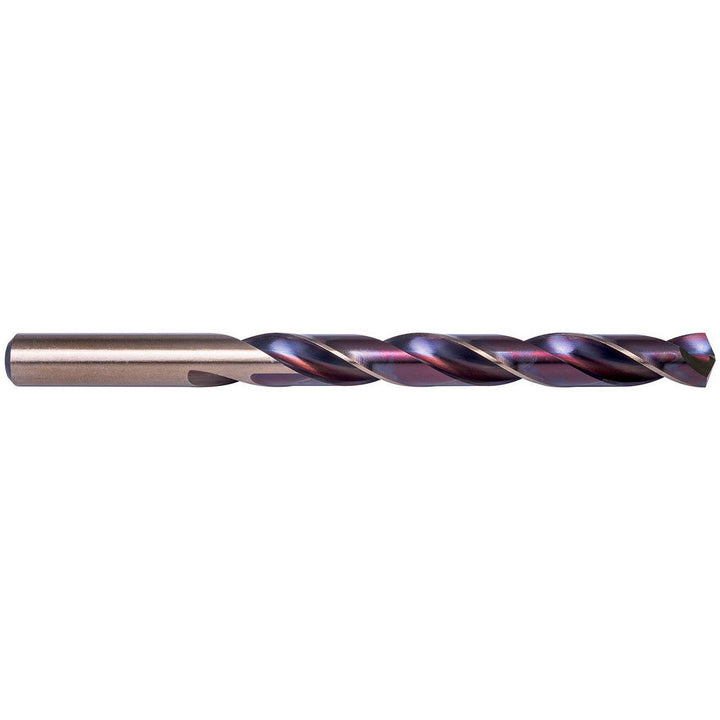

#51 HSS Drill Bit, Straw, 135° point - Precision Twist Drill 5995462

Precision Twist Drill

#51 HSS Drill Bit, Straw, 135° point - Precision Twist Drill 5995462

MFR# 5995462Series HX10-HX15-HX18

$1.99List $2.55 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingStraw

Description

The Precision Twist Drill 5995462 is a #51 HSS drill bit with a Straw finish, 135° point. Suited for high-temp alloy. 1 flute length, 2 overall length. Series HX10-HX15-HX18.

Specifications

Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeHeavy Duty
Drill bit materialHSS
Drill bit size0.0670
Drill bit size range0.0500 - 0.1000
Drill bit size wire#51
Drill point angle degrees135
Flute by diameter ratio15xD
Flute length in1
Flute typeRegular Spiral
Maximum drilling depth in1
Number of flats0
Number of flutes2
Overall length in2
Point typeStandard
Primary workpiece materialHigh-Temp Alloy
Shank diameter0.0670
Shank length in1
Shank typeStraight
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
