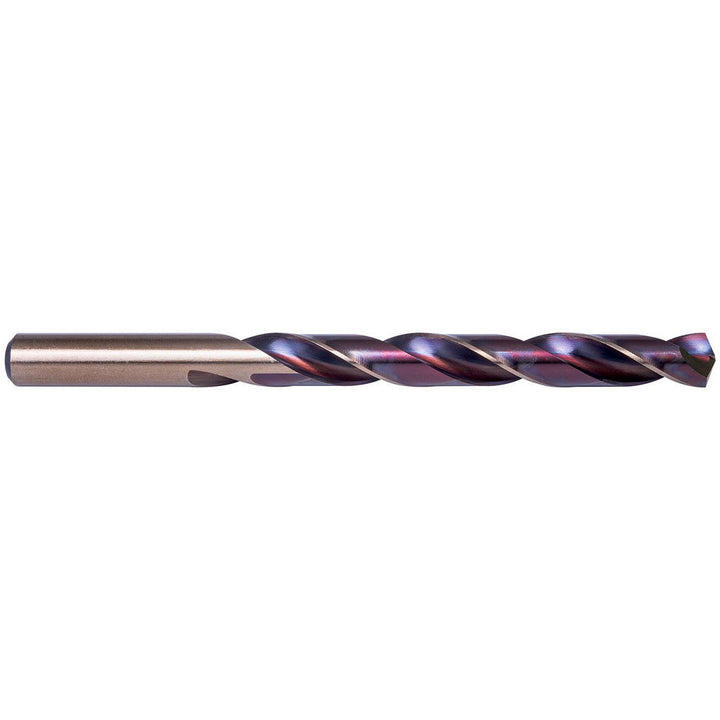

#40 HSS Drill Bit, Straw, 135° point - Precision Twist Drill 5995872

Precision Twist Drill

#40 HSS Drill Bit, Straw, 135° point - Precision Twist Drill 5995872

MFR# 5995872Series HX10-HX15-HX18

$1.99List $2.55 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingStraw

Description

The Precision Twist Drill 5995872 is a #40 HSS drill bit with a Straw finish, 135° point. Suited for high-temp alloy. 1-3/8 flute length, 2-3/8 overall length. Series HX10-HX15-HX18.

Specifications

Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeHeavy Duty
Drill bit materialHSS
Drill bit size0.0980
Drill bit size range0.0500 - 0.1000
Drill bit size wire#40
Drill point angle degrees135
Flute by diameter ratio14xD
Flute length in1-3/8
Flute typeRegular Spiral
Maximum drilling depth in1-3/8
Number of flats0
Number of flutes2
Overall length in2-3/8
Point typeStandard
Primary workpiece materialHigh-Temp Alloy
Shank diameter0.0980
Shank length in1
Shank typeStraight
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
