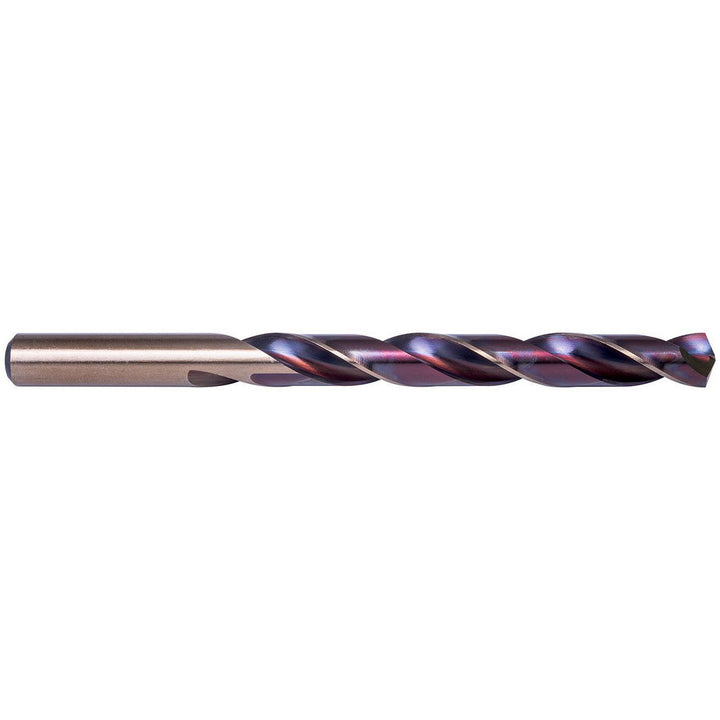

#41 High Speed Steel Drill Bit, Bronze, 135° point - Precision Twist Drill 5995881

Precision Twist Drill

#41 High Speed Steel Drill Bit, Bronze, 135° point - Precision Twist Drill 5995881

MFR# 5995881Series HX10-HX15-HX18

$1.98List $2.53 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingBronze

Description

The Precision Twist Drill 5995881 is a #41 High Speed Steel drill bit with a Bronze finish, 135° point. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1-3/8 flute length, 2-3/8 overall length. Series HX10-HX15-HX18.

Specifications

Coating finishBronze
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit materialHigh Speed Steel
Drill bit size0.0960
Drill bit size range0.0500 - 0.1000
Drill bit size wire#41
Drill point angle degrees135
Flute by diameter ratio14xD
Flute length in1-3/8
Flute typeSpiral
Maximum drilling depth in1-3/8
Number of flats0
Number of flutes2
Overall length in2-3/8
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Shank diameter0.0960
Shank length in1
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
