#44 High Speed Steel Drill Bit, Bronze, 135° point - Precision Twist Drill 5995894

Precision Twist Drill

#44 High Speed Steel Drill Bit, Bronze, 135° point - Precision Twist Drill 5995894

MFR# 5995894Series HX10-HX15-HX18

$1.98List $2.53 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingBronze

Description

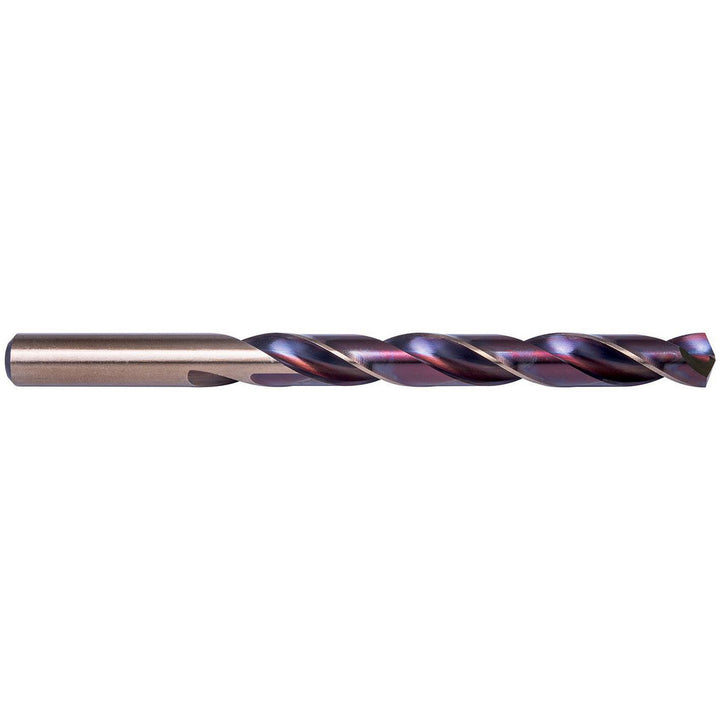

The Precision Twist Drill 5995894 is a #44 High Speed Steel drill bit with a Bronze finish, 135° point. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1-1/8 flute length, 2-1/8 overall length. Series HX10-HX15-HX18.

Specifications

Coating finishBronze
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit materialHigh Speed Steel
Drill bit size0.0860
Drill bit size range0.0500 - 0.1000
Drill bit size wire#44
Drill point angle degrees135
Flute by diameter ratio13xD
Flute length in1-1/8
Flute typeSpiral
Maximum drilling depth in1-1/8
Number of flats0
Number of flutes2
Overall length in2-1/8
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Shank diameter0.0860
Shank length in1
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
