Precision Twist Drill

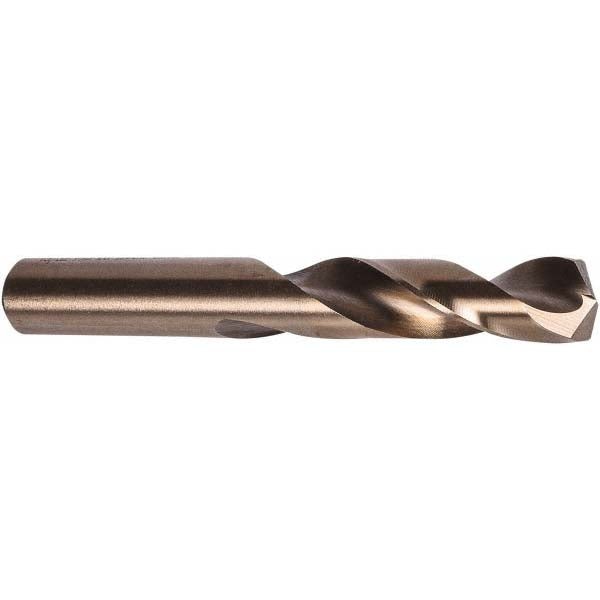

13/32" Cobalt Screw Machine Drill Bit, 135° point - Precision Twist Drill 5996011
MFR# 5996011Series M40CO
$15.20List $19.49
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size13/32
Description
The Precision Twist Drill 5996011 is a 13/32" Cobalt Screw Machine drill bit, 135° point. Suited for hard material. 1-15/16 flute length, 3-5/16in overall length. Series M40CO.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHeavy Duty
Drill bit size in13/32
Drill bit size range0.4000 to 0.4500
Drill length typeScrew Machine
Drill point angle135
Flute by diameter ratio2.5xD
Flute length in1-15/16
Flute typeSpiral
Material gradeM40
Overall length in3-5/16in
Point typeSplit
Primary workpiece materialHard Material
Shank diameter0.4062
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool materialCobalt
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
