9/32" Cobalt Screw Machine Drill Bit, Coated, 135° point - Precision Twist Drill 5996015

Precision Twist Drill

9/32" Cobalt Screw Machine Drill Bit, Coated, 135° point - Precision Twist Drill 5996015

MFR# 5996015Series M40CO

$7.46List $9.56 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size9/32
CoatingCoated

Description

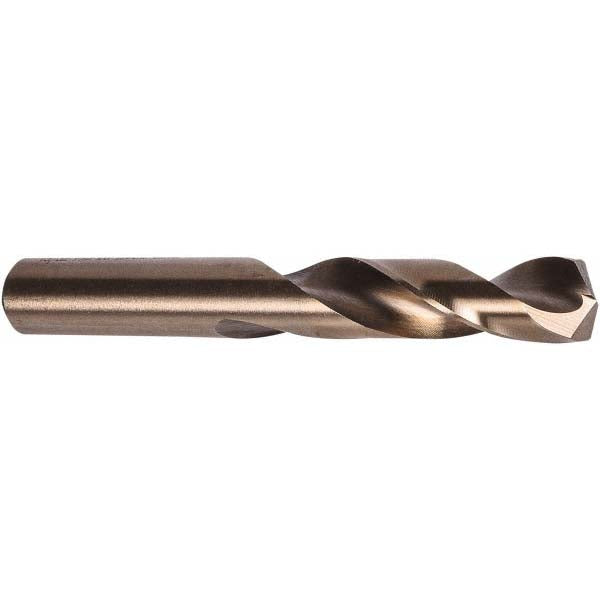

The Precision Twist Drill 5996015 is a 9/32" Cobalt Screw Machine drill bit with a Coated finish, 135° point. Suited for hard material. 1-1/2 flute length, 2-11/16 overall length. Series M40CO.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHeavy Duty
Drill bit size in9/32
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle135
Flute by diameter ratio2.5xD
Flute length in1-1/2
Flute typeSpiral
Material gradeM40
Overall length in2-11/16
Point typeSplit
Primary workpiece materialHard Material
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool materialCobalt
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
