Precision Twist Drill

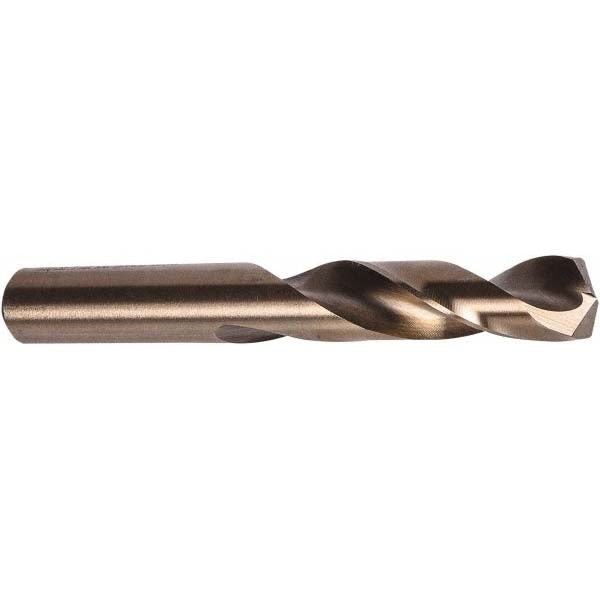

#1 Cobalt Screw Machine Drill Bit, Coated, 135° point - Precision Twist Drill 5996023
MFR# 5996023Series M41CO
$6.66List $8.53
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingCoated
Description
The Precision Twist Drill 5996023 is a #1 Cobalt Screw Machine drill bit with a Coated finish, 135° point. Suited for hard material. 1-5/16 flute length, 2-7/16 overall length. Series M41CO.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHeavy Duty
Drill bit size0.2280
Drill bit size range0.2000 to 0.2500
Drill bit size wire#1
Drill length typeScrew Machine
Drill point angle135
Flute by diameter ratio2.5xD
Flute length in1-5/16
Flute typeSpiral
Material gradeM41
Overall length in2-7/16
Point typeSplit
Primary workpiece materialHard Material
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool materialCobalt
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
