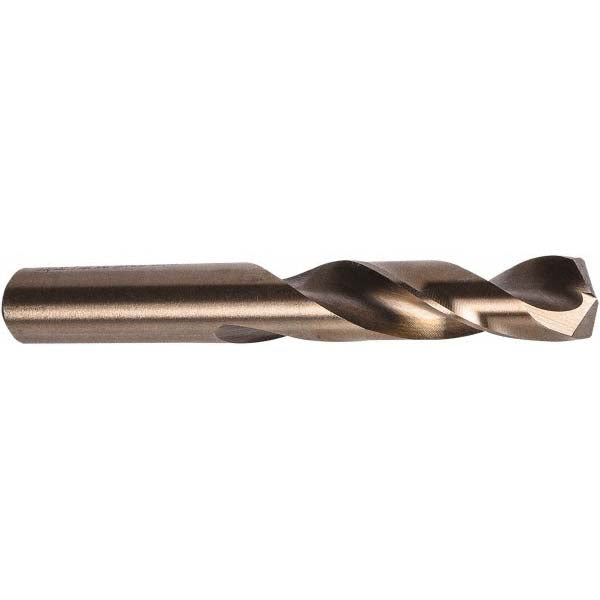

#36 Cobalt Screw Machine Drill Bit, Coated, 135° point - Precision Twist Drill 5996069

Precision Twist Drill

#36 Cobalt Screw Machine Drill Bit, Coated, 135° point - Precision Twist Drill 5996069

MFR# 5996069Series M41CO

$2.69List $3.45 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
CoatingCoated

Description

The Precision Twist Drill 5996069 is a #36 Cobalt Screw Machine drill bit with a Coated finish, 135° point. Suited for hard material. 13/16 flute length, 1-13/16 overall length. Series M41CO.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHeavy Duty
Drill bit size0.1065
Drill bit size range0.1000 to 0.1500
Drill bit size wire#36
Drill length typeScrew Machine
Drill point angle135
Flute by diameter ratio2.5xD
Flute length in13/16
Flute typeSpiral
Material gradeM41
Overall length in1-13/16
Point typeSplit
Primary workpiece materialHard Material
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool materialCobalt
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
