Precision Twist Drill

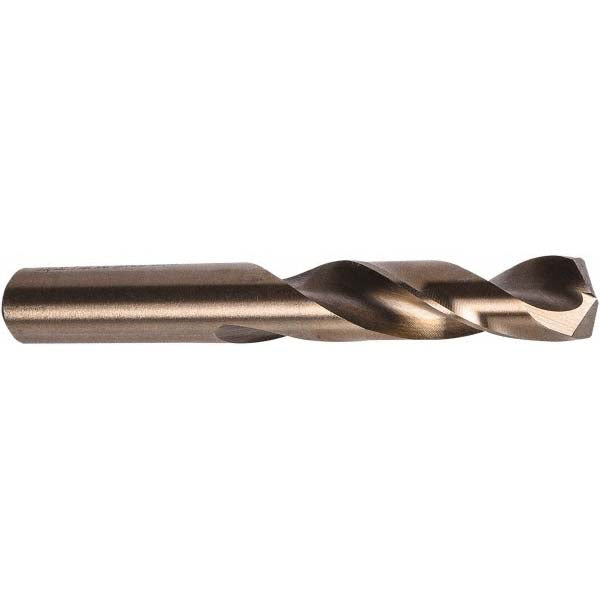

#45 Cobalt Screw Machine Drill Bit, 135° point - Precision Twist Drill 5996103
MFR# 5996103Series M41CO
$2.35List $3.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Precision Twist Drill 5996103 is a #45 Cobalt Screw Machine drill bit, 135° point. Suited for hard material. 3/4 flute length, 1-3/4in overall length. Series M41CO.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHeavy Duty
Drill bit size0.0820
Drill bit size wire#45
Drill length typeScrew Machine
Drill point angle135
Flute by diameter ratio2.5xD
Flute length in3/4
Flute typeSpiral
Material gradeM41
Overall length in1-3/4in
Point typeSplit
Primary workpiece materialHard Material
Shank diameter0.0820
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool materialCobalt
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
