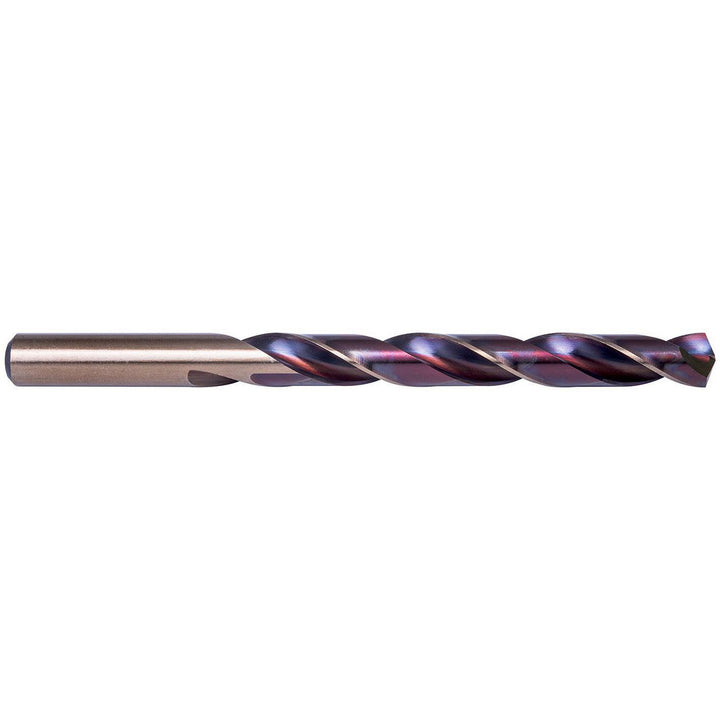

Letter B HSS Drill Bit, Straw, 135° point - Precision Twist Drill 5996329

Precision Twist Drill

Letter B HSS Drill Bit, Straw, 135° point - Precision Twist Drill 5996329

MFR# 5996329Series HX10-HX15-HX18

$4.38List $5.63 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingStraw

Description

The Precision Twist Drill 5996329 is a Letter B HSS drill bit with a Straw finish, 135° point. Suited for high-temp alloy. 2-3/4 flute length, 4 overall length. Series HX10-HX15-HX18.

Specifications

Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeHeavy Duty
Drill bit materialHSS
Drill bit size0.2380
Drill bit size letterB
Drill bit size range0.2000 - 0.2500
Drill point angle degrees135
Flute by diameter ratio12xD
Flute length in2-3/4
Flute typeRegular Spiral
Material gradeM2
Maximum drilling depth in2-3/4
Number of flats0
Number of flutes2
Overall length in4
Point typeStandard
Primary workpiece materialHigh-Temp Alloy
Shank diameter0.2380
Shank length in1-1/4
Shank typeStraight
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
