Precision Twist Drill
Letter M High Speed Steel Drill Bit, 135° point - Precision Twist Drill 5996571
MFR# 5996571Series QC21P
$10.35List $13.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description

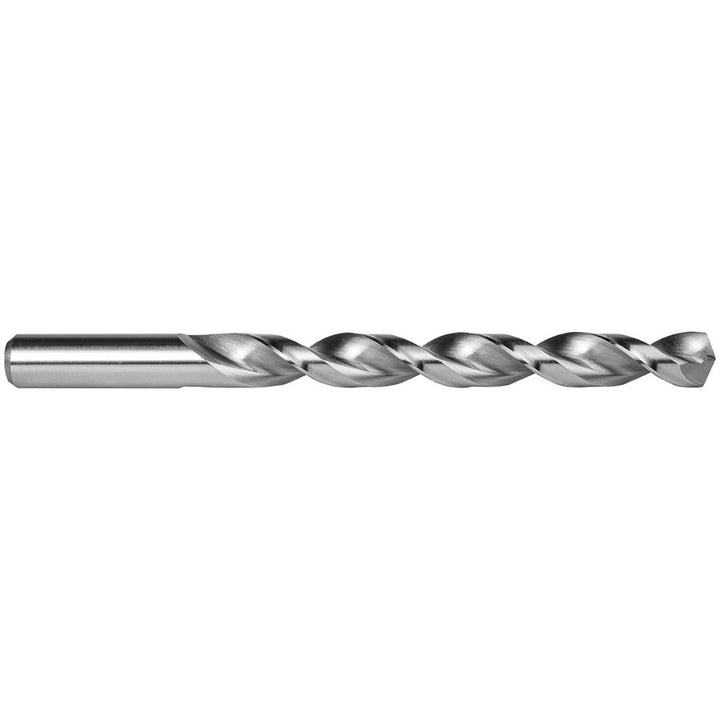

The Precision Twist Drill 5996571 is a Letter M High Speed Steel drill bit, 135° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 3-1/16 flute length, 4-3/8in overall length. Series QC21P.
Specifications
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit materialHigh Speed Steel
Drill bit size0.2950
Drill bit size letterM
Drill bit size range0.2500 - 0.3000
Drill point angle degrees135
Flute by diameter ratio10xD
Flute length in3-1/16
Flute typeSpiral
Maximum drilling depth in3-1/16
Number of flats0
Number of flutes2
Overall length in4-3/8in
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter0.2950
Shank length in1-5/16
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
