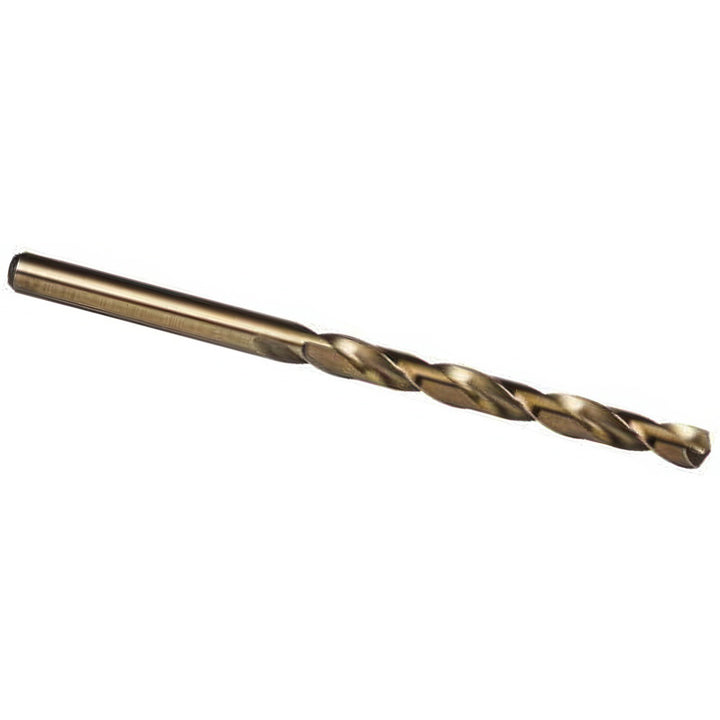

1/8" Cobalt Drill Bit, Coated, 135° point - Precision Twist Drill 5996577

Precision Twist Drill

1/8" Cobalt Drill Bit, Coated, 135° point - Precision Twist Drill 5996577

MFR# 5996577Series M51CO

$13.88List $17.79 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/8
CoatingCoated

Description

The Precision Twist Drill 5996577 is a 1/8" Cobalt drill bit with a Coated finish, 135° point. 2-3/4 flute length. Series M51CO.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHeavy-Duty
Drill bit size in1/8
Drill point angle degrees135
Flute length in2-3/4
Flute length x diameter ratio6xD
Flute typeSpiral
Material applicationAlloy Steel; Aluminum; Aluminum Alloy; Brass; Bronze; Carbon Steel; Cast Iron; Cermet; Copper; Graphite; Hardened Steel; High Strength Bronze; Magnesium; Magnesium Alloy; Malleable Iron; Nickel; Nickel Alloy; Reinforced Plastic Materials; Stainless Steel
Overall length5-1/8
Point typeSplit
Shank diameter0.1250
Shank typeStraight
Spiral typeRegular
StandardsANSI
Threaded shankNo
Tool applicationSelf-Centering
Tool materialCobalt
Tool performanceHigh
Web configurationTapered
Web thinningWeb-Thinned
