Precision Twist Drill
#7 High Speed Steel Screw Machine Drill Bit, 135° point - Precision Twist Drill 5997245
MFR# 5997245Series QC41P
$8.05List $10.32
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

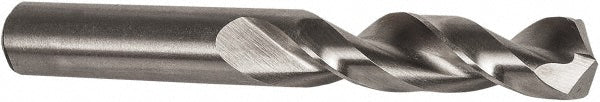

The Precision Twist Drill 5997245 is a #7 High Speed Steel Screw Machine drill bit, 135° point. Suited for cast iron, steel. 1-3/16 flute length, 2-1/4 overall length. Series QC41P.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit size0.2010
Drill bit size range0.2000 to 0.2500
Drill bit size wire#7
Drill length typeScrew Machine
Drill point angle135
Flute by diameter ratio3xD
Flute length in1-3/16
Flute typeParabolic
Overall length in2-1/4
Point typeSplit
Primary workpiece materialCast Iron; Steel
Shank typeStraight-Cylindrical
Specification designationANSI
StandardsANSI
Tool materialHigh Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
