Precision Twist Drill
5/16" HSS Screw Machine Drill Bit, 135° point - Precision Twist Drill 5997583
MFR# 5997583Series QC41P
$9.46List $12.13
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/16
Flutes2
Description

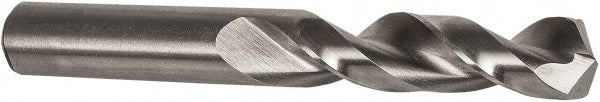

The Precision Twist Drill 5997583 is a 5/16" HSS Screw Machine drill bit, 135° point. Suited for steel, cast iron. 1-5/8 flute length, 2-13/16 overall length. Series QC41P.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit size in5/16
Drill bit size range0.3000 to 0.3500
Drill length typeScrew Machine
Drill point angle135
Flute by diameter ratio3xD
Flute length in1-5/8
Flute typeParabolic
Number of flutes2
Overall length in2-13/16
Point typeSplit Point
Primary workpiece materialSteel; Cast Iron
Shank diameter0.3125
Shank typeStraight
Specification designationANSI
Spiral typeFast
StandardsANSI
Tool materialHSS
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
