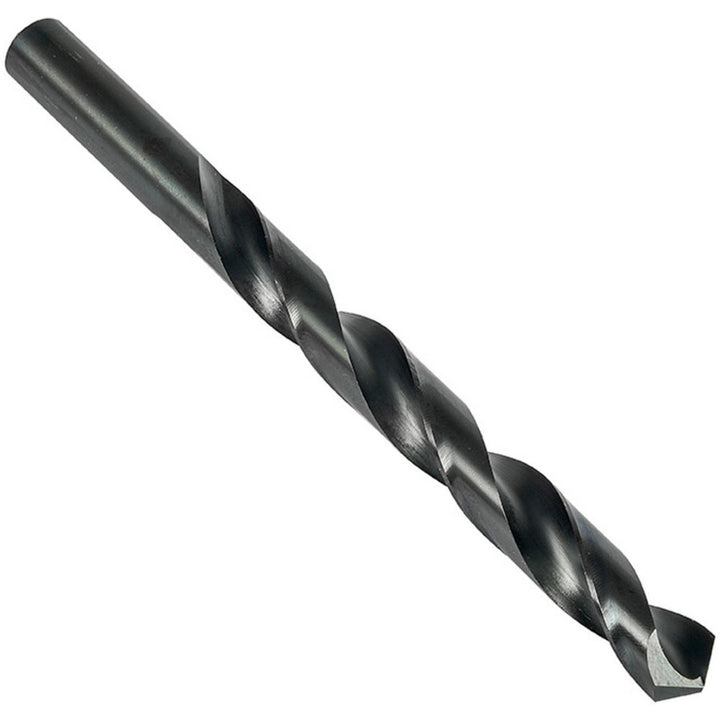

#9 High Speed Steel Drill Bit, Steam Oxide, 135° point - Precision Twist Drill 5997670

Precision Twist Drill

#9 High Speed Steel Drill Bit, Steam Oxide, 135° point - Precision Twist Drill 5997670

MFR# 5997670Series R10B-R15B-R18B

$3.50List $4.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingSteam Oxide

Description

The Precision Twist Drill 5997670 is a #9 High Speed Steel drill bit with a Steam Oxide finish, 135° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 2-7/16 flute length, 3-5/8in overall length. Series R10B-R15B-R18B.

Specifications

Coating finishSteam Oxide
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size0.1960
Drill bit size range0.1500 - 0.2000
Drill bit size wire#9
Drill point angle degrees135
Flute by diameter ratio12xD
Flute length in2-7/16
Flute typeSpiral
Maximum drilling depth in2-7/16
Number of flats0
Number of flutes2
Overall length in3-5/8in
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter0.1960
Shank length in1-3/16
Shank typeStraight-Cylindrical
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
