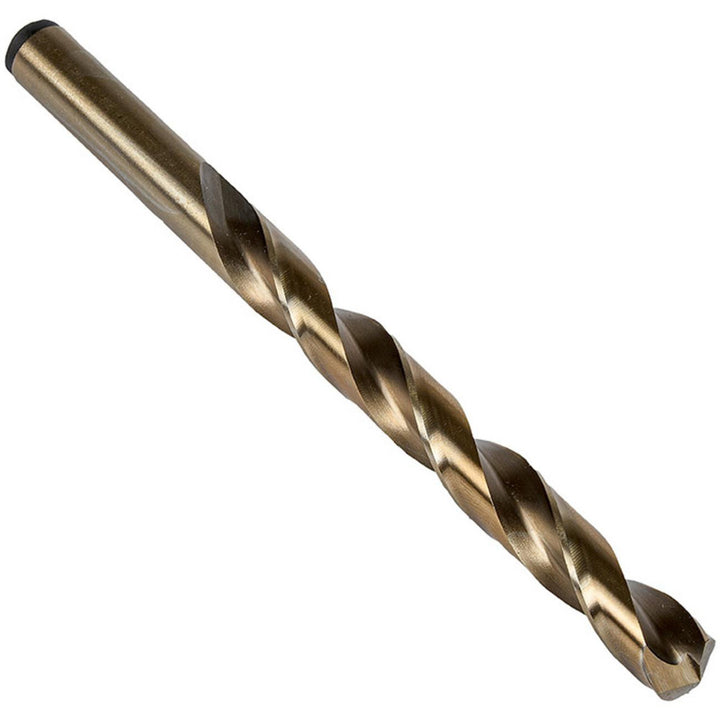

#50 Cobalt Drill Bit, Straw, 135° point - Precision Twist Drill 5997737

Precision Twist Drill

#50 Cobalt Drill Bit, Straw, 135° point - Precision Twist Drill 5997737

MFR# 5997737Series R10CO-R15CO-R18CO

$2.63List $3.38 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingStraw

Description

The Precision Twist Drill 5997737 is a #50 Cobalt drill bit with a Straw finish, 135° point. Suited for steel. 1 flute length, 2 overall length. Series R10CO-R15CO-R18CO.

Specifications

Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.0700
Drill bit size range0.0500 - 0.1000
Drill bit size wire#50
Drill point angle degrees135
Flute by diameter ratio14xD
Flute length in1
Flute typeRegular Spiral
Maximum drilling depth in1
Number of flats0
Number of flutes2
Overall length in2
Point typeStandard
Primary workpiece materialSteel
Shank diameter0.0700
Shank length in1
Shank typeStraight
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
