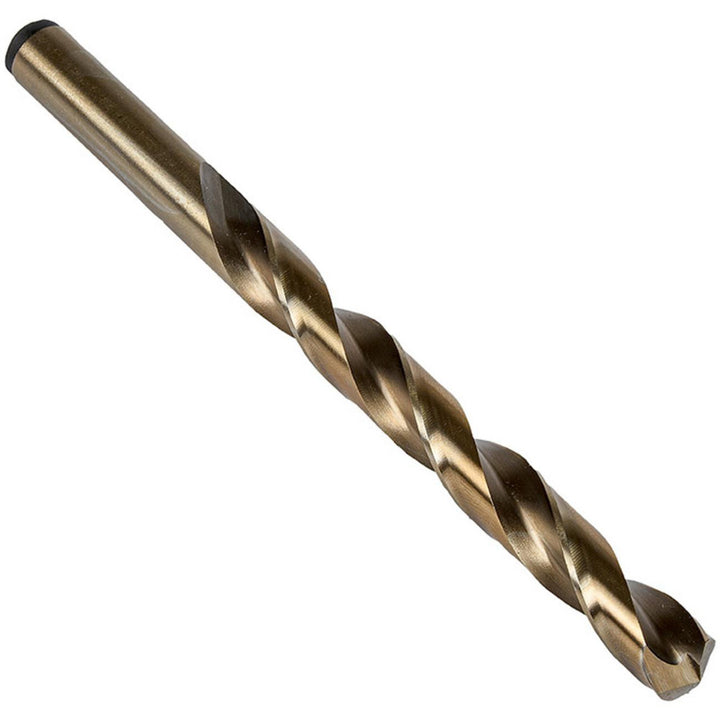

#36 Cobalt Drill Bit, Straw, 135° point - Precision Twist Drill 5997763

Precision Twist Drill

#36 Cobalt Drill Bit, Straw, 135° point - Precision Twist Drill 5997763

MFR# 5997763Series R10CO-R15CO-R18CO

$2.88List $3.70 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingStraw

Description

The Precision Twist Drill 5997763 is a #36 Cobalt drill bit with a Straw finish, 135° point. Suited for steel. 1-7/16 flute length, 2-1/2 overall length. Series R10CO-R15CO-R18CO.

Specifications

Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.1065
Drill bit size range0.1000 - 0.1500
Drill bit size wire#36
Drill point angle degrees135
Flute by diameter ratio13xD
Flute length in1-7/16
Flute typeRegular Spiral
Maximum drilling depth in1-7/16
Number of flats0
Number of flutes2
Overall length in2-1/2
Point typeStandard
Primary workpiece materialSteel
Shank diameter0.1065
Shank length in1-1/16
Shank typeStraight
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
