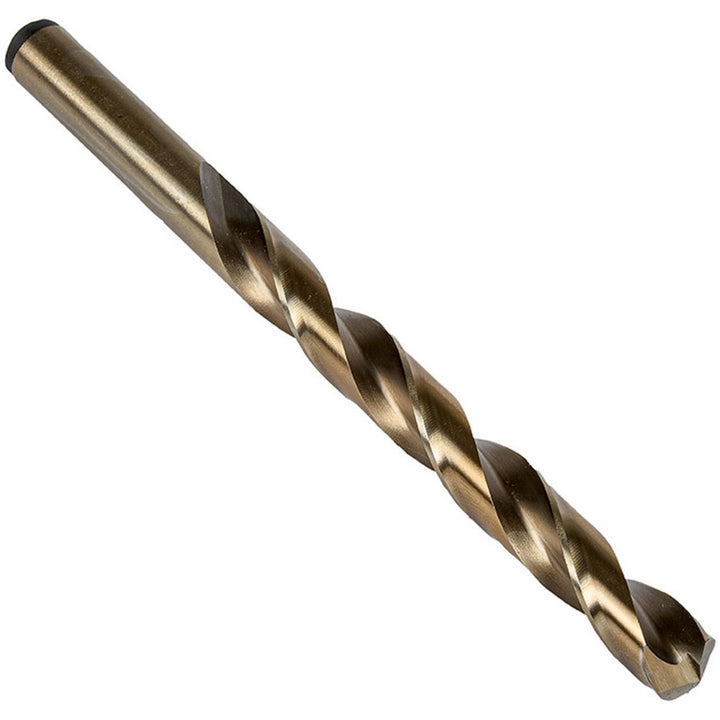

#73 Cobalt Drill Bit, Straw, 135° point - Precision Twist Drill 5997822

Precision Twist Drill

#73 Cobalt Drill Bit, Straw, 135° point - Precision Twist Drill 5997822

MFR# 5997822Series R10CO-R15CO-R18CO

$4.61List $5.91 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingStraw

Description

The Precision Twist Drill 5997822 is a #73 Cobalt drill bit with a Straw finish, 135° point. Suited for steel. 5/16 flute length, 1-1/8 overall length. Series R10CO-R15CO-R18CO.

Specifications

Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.0240
Drill bit size range0.0000 - 0.0500
Drill bit size wire#73
Drill point angle degrees135
Flute by diameter ratio13xD
Flute length in5/16
Flute typeRegular Spiral
Maximum drilling depth in5/16
Number of flats0
Number of flutes2
Overall length in1-1/8
Point typeStandard
Primary workpiece materialSteel
Shank diameter0.0240
Shank length in13/16
Shank typeStraight
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
