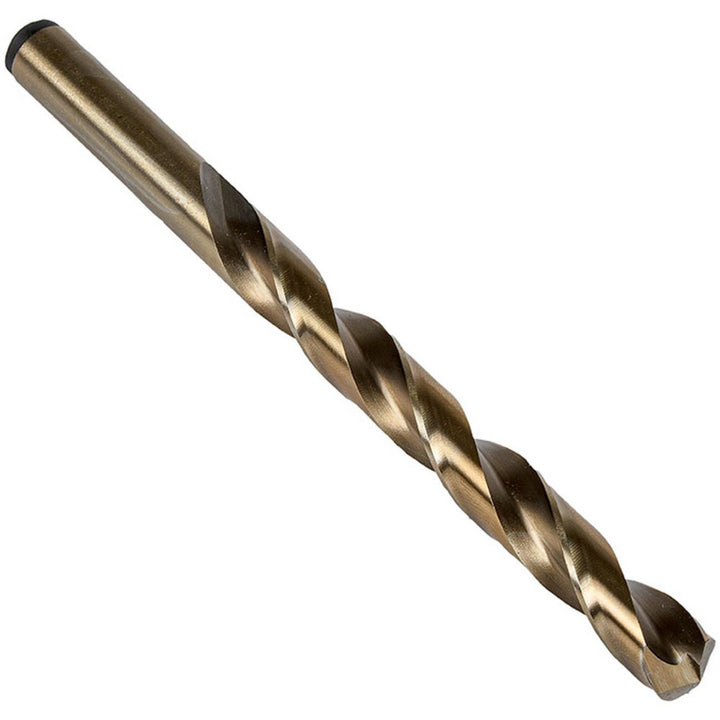

#44 Cobalt Drill Bit, Straw, 135° point - Precision Twist Drill 5997835

Precision Twist Drill

#44 Cobalt Drill Bit, Straw, 135° point - Precision Twist Drill 5997835

MFR# 5997835Series R10CO-R15CO-R18CO

$2.63List $3.38 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingStraw

Description

The Precision Twist Drill 5997835 is a #44 Cobalt drill bit with a Straw finish, 135° point. Suited for steel. 1-1/8 flute length, 2-1/8 overall length. Series R10CO-R15CO-R18CO.

Specifications

Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.0860
Drill bit size range0.0500 - 0.1000
Drill bit size wire#44
Drill point angle degrees135
Flute by diameter ratio13xD
Flute length in1-1/8
Flute typeRegular Spiral
Maximum drilling depth in1-1/8
Number of flats0
Number of flutes2
Overall length in2-1/8
Point typeStandard
Primary workpiece materialSteel
Shank diameter0.0860
Shank length in1
Shank typeStraight
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
