Precision Twist Drill

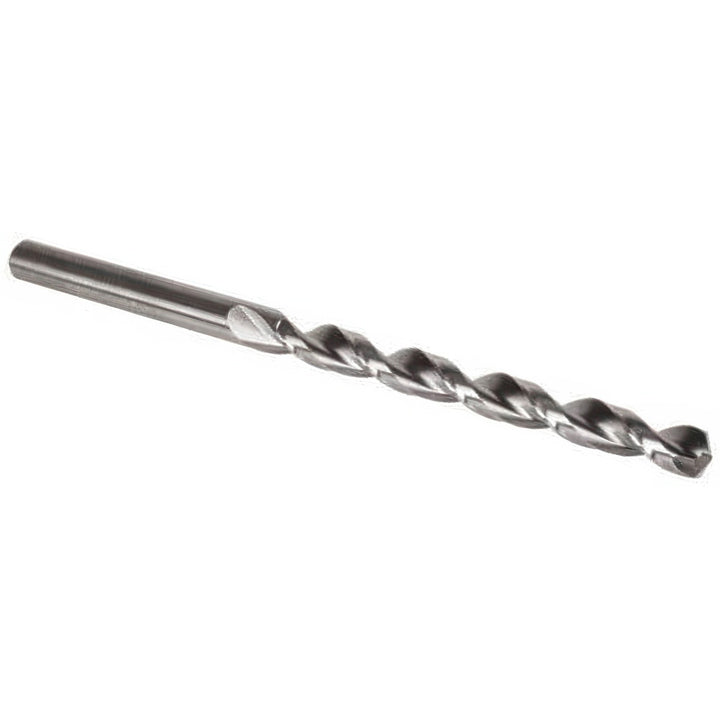

0.2756" High Speed Steel Drill Bit, 135° point - Precision Twist Drill 5997936
MFR# 5997936Series QC91PM
$22.52List $28.88
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Precision Twist Drill 5997936 is a 0.2756" High Speed Steel drill bit, 135° point. 4-1/64 flute length. Series QC91PM.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHeavy-Duty
Drill bit size0.2756
Drill point angle degrees135
Flute length in4-1/64
Flute length x diameter ratio6xD
Flute typeParabolic
Material applicationAlloy Steel; Aluminum; Aluminum Alloy; Brass; Bronze; Carbon Steel; Cast Iron; Copper; Graphite; Hardened Steel; Magnesium; Magnesium Alloy; Malleable Iron; Nickel; Stainless Steel; Steel; Tempered Steel; Titanium; Titanium Alloy
Overall length6-9/64
Point typeSplit
Shank diameter0.2756
Shank length (mm)54.00
Shank typeStraight
Specification numberDIN 340
StandardsDIN 340
Threaded shankNo
Tool applicationSelf-Centering
Tool materialHigh Speed Steel
Tool performanceHigh
Web configurationTapered
Web thinningWeb-Thinned
