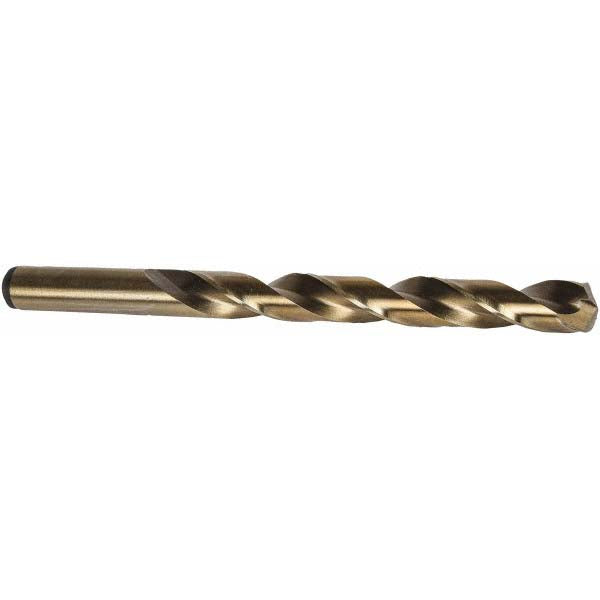

23/64" Cobalt Drill Bit, Straw, 135° point - Precision Twist Drill 5998160

Precision Twist Drill

23/64" Cobalt Drill Bit, Straw, 135° point - Precision Twist Drill 5998160

MFR# 5998160Series R10CO-R15CO-R18CO

$14.68List $18.82 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size23/64
Flutes2
CoatingStraw

Description

The Precision Twist Drill 5998160 is a 23/64" Cobalt drill bit with a Straw finish, 135° point. Suited for steel. 3-1/2 flute length, 4-7/8 overall length. Series R10CO-R15CO-R18CO.

Specifications

Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size in23/64
Drill bit size range0.3500 - 0.4000
Drill point angle degrees135
Flute by diameter ratio10xD
Flute length in3-1/2
Flute typeRegular Spiral
Maximum drilling depth in3-1/2
Number of flats0
Number of flutes2
Overall length in4-7/8
Point typeStandard
Primary workpiece materialSteel
Shank diameter in23/64
Shank length in1-3/8
Shank typeStraight
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
