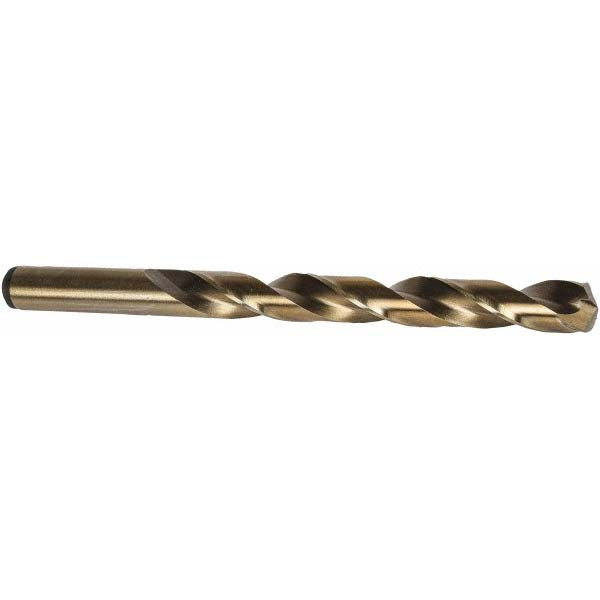

13/64" Cobalt Drill Bit, Straw, 135° point - Precision Twist Drill 5998243

Precision Twist Drill

13/64" Cobalt Drill Bit, Straw, 135° point - Precision Twist Drill 5998243

MFR# 5998243Series R10CO-R15CO-R18CO

$5.46List $7.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size13/64
Flutes2
CoatingStraw

Description

The Precision Twist Drill 5998243 is a 13/64" Cobalt drill bit with a Straw finish, 135° point. Suited for steel. 2-7/16 flute length, 3-5/8 overall length. Series R10CO-R15CO-R18CO.

Specifications

Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size in13/64
Drill bit size range0.2000 - 0.2500
Drill point angle degrees135
Flute by diameter ratio12xD
Flute length in2-7/16
Flute typeRegular Spiral
Maximum drilling depth in2-7/16
Number of flats0
Number of flutes2
Overall length in3-5/8
Point typeStandard
Primary workpiece materialSteel
Shank diameter in13/64
Shank length in1-3/16
Shank typeStraight
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
