Precision Twist Drill

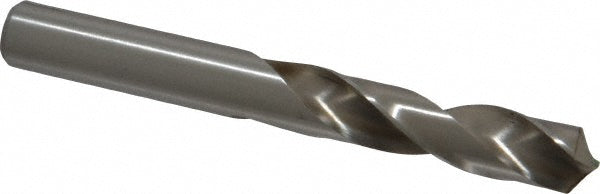

3/8" High Speed Steel Screw Machine Drill Bit, 118° point - Precision Twist Drill 5998478
MFR# 5998478Series R40
$6.90List $8.86
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/8
Description
The Precision Twist Drill 5998478 is a 3/8" High Speed Steel Screw Machine drill bit, 118° point. Suited for titanium. 1-13/16 flute length, 3-1/8 overall length. Series R40.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeGeneral Purpose
Drill bit size in3/8
Drill bit size range0.3500 to 0.4000
Drill length typeScrew Machine
Drill point angle118
Flute by diameter ratio2.5xD
Flute length in1-13/16
Flute typeSpiral
Overall length in3-1/8
Point typeStandard
Primary workpiece materialTitanium
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool materialHigh Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
