Precision Twist Drill

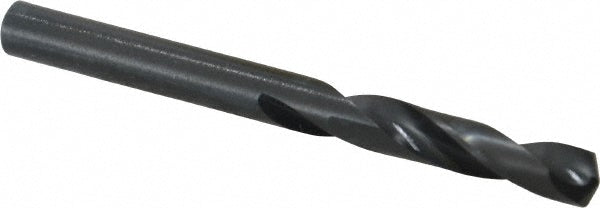

#2 High Speed Steel Screw Machine Drill Bit, Coated, 135° point - Precision Twist Drill 5998566
MFR# 5998566Series R41C
$3.34List $4.29
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingCoated
Description
The Precision Twist Drill 5998566 is a #2 High Speed Steel Screw Machine drill bit with a Coated finish, 135° point. Suited for titanium. 1-5/16 flute length, 2-7/16 overall length. Series R41C.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHeavy Duty
Drill bit size0.2210
Drill bit size range0.2000 to 0.2500
Drill bit size wire#2
Drill length typeScrew Machine
Drill point angle135
Flute by diameter ratio2.5xD
Flute length in1-5/16
Flute typeSpiral
Overall length in2-7/16
Point typeSplit
Primary workpiece materialTitanium
Shank typeStraight-Cylindrical
Specification designationANSI; NAS
Specification numberNAS 907
Spiral typeRegular
StandardsANSI
Tool materialHigh Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
