Precision Twist Drill

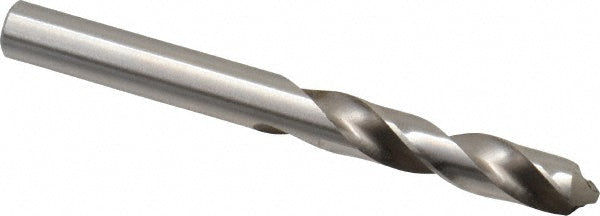

1/4" High Speed Steel Screw Machine Drill Bit, 118° point - Precision Twist Drill 5998572
MFR# 5998572Series R40
$3.14List $4.03
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/4
Description
The Precision Twist Drill 5998572 is a 1/4" High Speed Steel Screw Machine drill bit, 118° point. Suited for titanium. 1-3/8 flute length, 2-1/2 overall length. Series R40.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeGeneral Purpose
Drill bit size in1/4
Drill bit size letterE
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle118
Flute by diameter ratio2.5xD
Flute length in1-3/8
Flute typeSpiral
Overall length in2-1/2
Point typeStandard
Primary workpiece materialTitanium
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool materialHigh Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
