Precision Twist Drill
9/16" High Speed Steel Screw Machine Drill Bit, 118° point - Precision Twist Drill 5998582
MFR# 5998582Series R40
$27.88List $35.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/16
Description

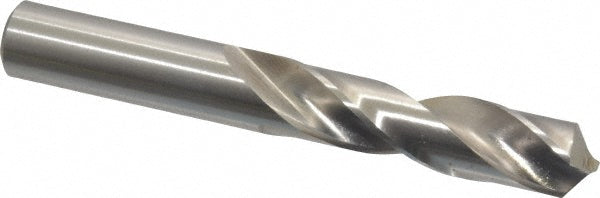

The Precision Twist Drill 5998582 is a 9/16" High Speed Steel Screw Machine drill bit, 118° point. Suited for titanium. 2-1/2 flute length, 4 overall length. Series R40.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeGeneral Purpose
Drill bit size in9/16
Drill bit size range0.5000 to 0.6000
Drill length typeScrew Machine
Drill point angle118
Flute by diameter ratio2.5xD
Flute length in2-1/2
Flute typeSpiral
Overall length in4
Point typeStandard
Primary workpiece materialTitanium
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool materialHigh Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
