Precision Twist Drill

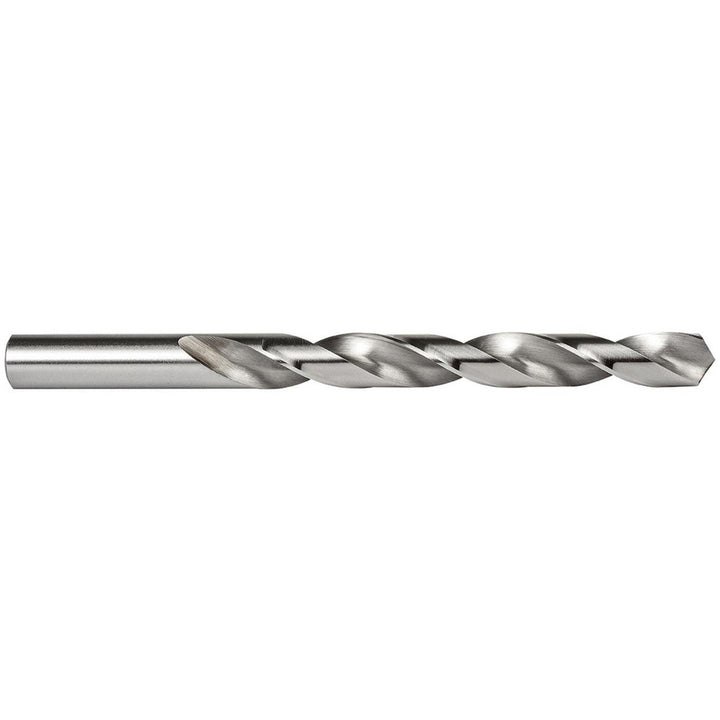

Letter O High Speed Steel Drill Bit, 118° point - Precision Twist Drill 5998889
MFR# 5998889Series R10P-R15P-R18P
$6.40List $8.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Precision Twist Drill 5998889 is a Letter O High Speed Steel drill bit, 118° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 3-3/16 flute length, 4-1/2in overall length. Series R10P-R15P-R18P.
Specifications
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.3160
Drill bit size letterO
Drill bit size range0.3000 - 0.3500
Drill point angle degrees118
Flute by diameter ratio10xD
Flute length in3-3/16
Flute typeSpiral
Maximum drilling depth in3-3/16
Number of flats0
Number of flutes2
Overall length in4-1/2in
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter0.3160
Shank length in1-5/16
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
